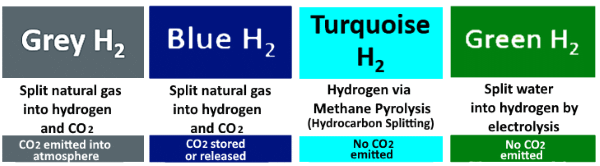

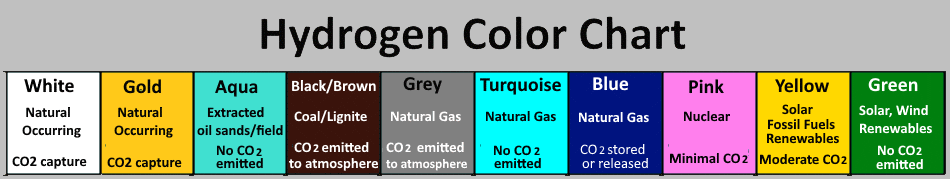

Hydrogen Color Chart

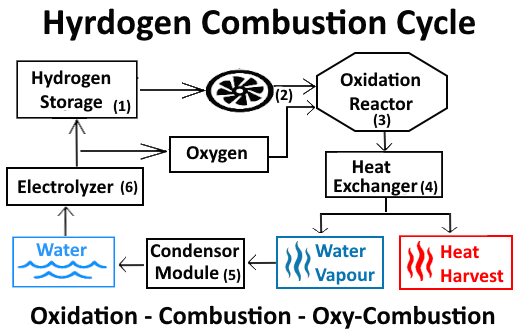

Hydrogen Combustion Cycle
Step # 01. - Starting with stored compressed hydrogen
Step # 02. - The compressed Hydrogen is released across a turbo pressure harvester unit
Step # 03. - The hydrogen continues into the
combustion reactor
where it is oxidized,
releasing heat and expelling water vapour
Step # 04. - The exhaust stream is routed through a heat exchange system to extract and harvest the heat into a loop
Step # 05. - The water vapour is condenced into water in a condensing module
Step # 06. - The water may be cycled back into an electrolyzer to produce a regenerated hydrogen and oxygen supply
